15.6inch transparent glass touch film, LCD touch screen foil film

  • 1 - 10 Pieces
  • >=11 Pieces
Screen Size:
Model Number:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 10 11 - 51 >51
Est. Time(days) 14 18 Negotiable
Customized packaging (Min. Order: 1 Pieces)
Size customization (Min. Order: 1 Pieces)
$65.60 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
RoHS, ce, FCC
For Business
Aspect Ratio:
After-sales Service:
Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair, Others
Products Status:
New, Stock
Interface Type:
Brand Name:
Place of Origin:
Guangdong, China
Product name:
capacitive Touch Foil Film Through Glass
Touch points:
10 points
Touch sensors:
TX48 RX28
Scanning speed:
10 ms / frame
Transmission distance:
≤50m (add USB signal amplifier, etc.)
Sensing distance:
≤10mm(please inform us when >8mm)
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

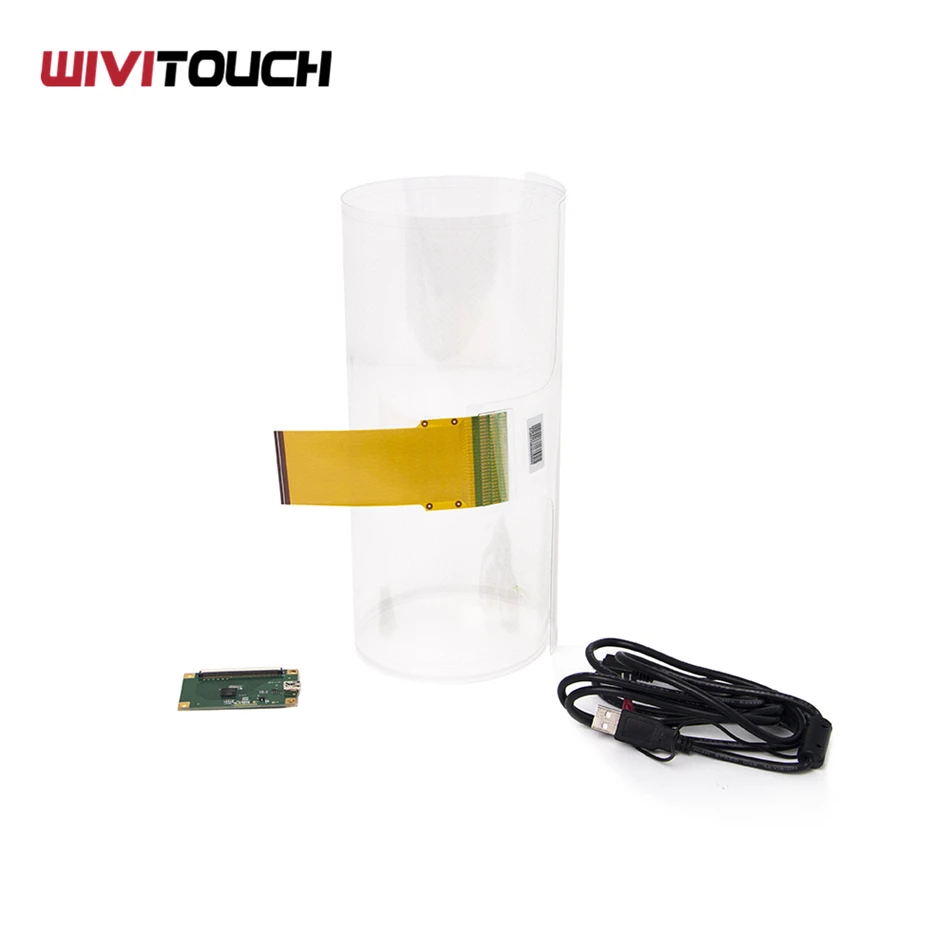

Cylinder; included 1pcs touch foil ,1pcs touch foil controller, 1pcs touch foil USB cable
Lead Time :
Quantity(Pieces) 1 - 10 11 - 51 >51
Est. Time(days) 14 18 To be negotiated
Product Description
What is WiViTouch touch foil?
WiVi uses a unique transparent touch foil that can be controlled through the glass.
Everything is installed on the inside of the shop window. WiVi Touch Foil can be combined with projection or LCD screens to create an interactive shop window, outdoor/indoor kiosks, digital signage, touch screen table and LCD monitor etc.
WiVi Touch Foil acts as an eye-catcher, it creates instant interactivity.
Paramete Name

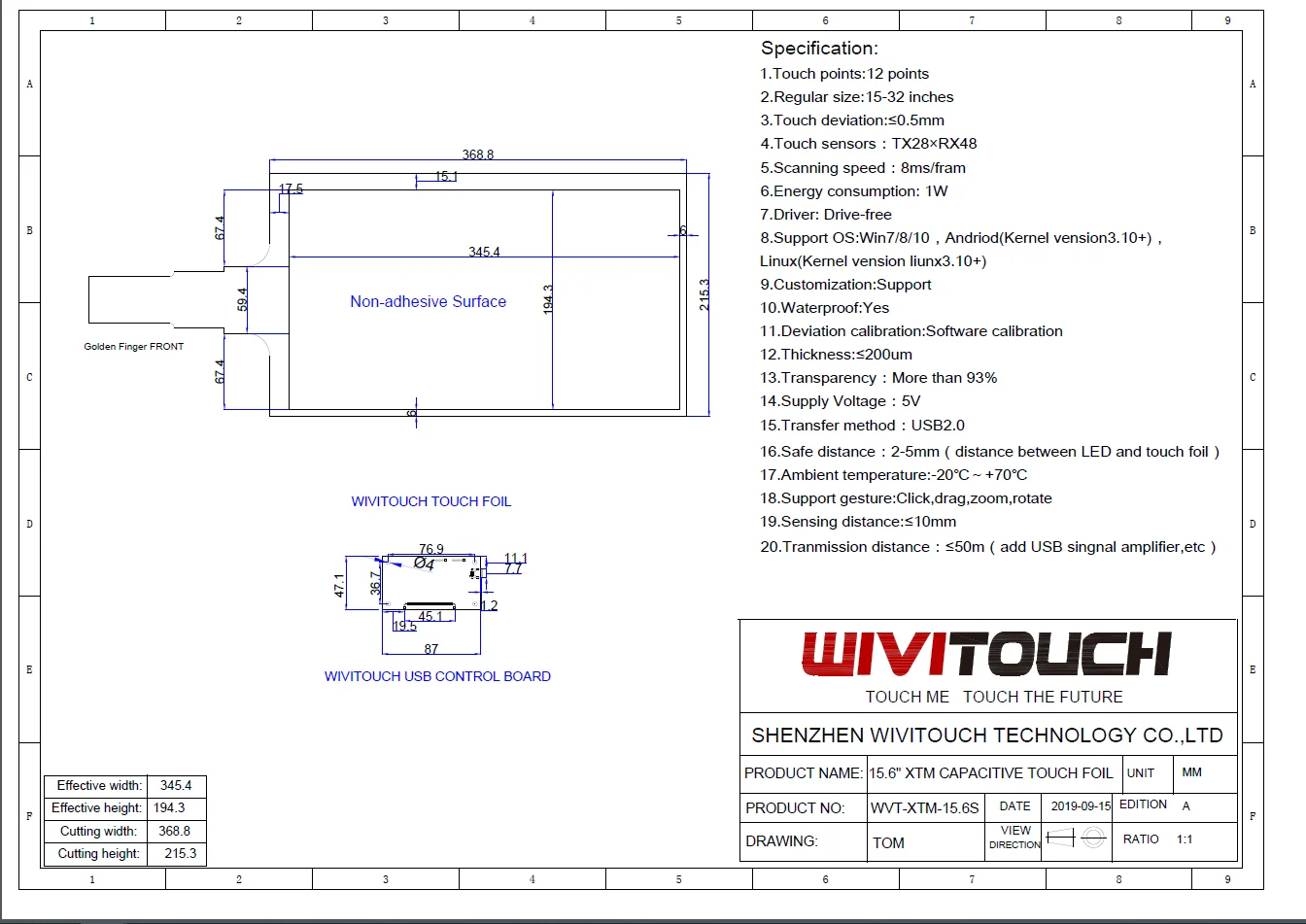

WiViTouch XT series Capacitive touch foil specification
Product Series
Touch points
12 points
20 points
(Can be upgraded to 40 points)
30 points
(Can be upgraded to 40 points)
40 points
Regular size
15-43 inches
30-65 inches
55-98 inches
43-180 inches
Touch deviation
Touch sensors
TX28 RX48
TX56 RX96
TX80 RX142
TX136 RX240
Scanning speed
8 ms / fram
8 ms / fram
8 ms / fram
8 ms / fram
Kernel version 3.10+ or higher
Kernel version liunx3.10+ or higher
Deviation calibration
Software calibration
Package list
Touch foil*1, controller*1,1.5m USB cable *1
More than 93%
Supply voltage
Transfer method
Safe distance
2-5mm(distance between LED and touch foil)
Transmission distance
≤50m(add USB signal amplifier, etc)
Support gesture
Click, drag, zoom, rotate
Ambient light
The whole point of the anti-glare
Sensing distance

Why the touch foil becomes more and more popular?

1. Lightweight foil simple to apply to a window, glass, acrylic, and rear projection screens. 2. No requirement to have any external wires or devices as all of the touch screen components are situated safely behind the glass. 3.High quality transparent multi-touch foils (up to 40 touch points),multi touch function – glass up to 12mm thick. 4. Works with all existing multimedia applications PowerPoint, Macromedia Flash, Web sites, etc.
5. Not sensitive to outer light, the change of light would not affect. 6. Wide range of screen regular sizes available up to 100" 4: 3 or 16: 9 format. 7.Includes full installation kit – touch foil, controller board & USB line. 8.No mechanical or pressure-sensitive elements, durable and stable. 9. Easy to install software .
10.Accurate positioning. 11.High-resolution controller.
Please note:
WVT-XTM-xxB is for tail out from bottom;
WVT-XTM-xxS is for tail out from short side.

What application the touch foil works for?

Integrated nano-touch film, can realize interactive projection system, touch one machine, touch coffee table/table, touch wall, touch TV etc. These system integration products or solutions can be applied in the exhibition/hotels/airports/government/home/ teaching /store windowdisplays/Indoor / outdoor kiosks Glass partitions/Corporate offices/Training / meeting rooms/Exhibitions/conferences Museums / visitor attractions

How does the touch foil work?

Only a few microns thick our thin-film display screens can turn any surface into a high definition multimedia display surface. Rear projected images, videos, and dynamic media content can be displayed in any format, anywhere.Installation: Attached to the glass, LCD or other media

Mode A type

Touch foil + rear projection film + projector + PC
This type of installation solution can be used for glass windows, store windowdisplays, Indoor, outdoor kiosks Glass partitions, Training, meeting rooms

Mode B type

Touch foil + LCD monitor + PC
This type of installation solution can be used for touch kiosks, LCD monitors, LCD advertising display,  ATM, vending machines, etc.

WiViTouch Touch foil Advantages

1. You’re buying from a factory! Price, Quality and Lead time is guaranteed!
 China's first manufacturer of touch foils for R&D, production and sales, with more than 10 years experience in touch foil
      FPC double laser soldering
              Foil QC inspection
     Controller board QC inspection
                   QC passed
2. Touch foil certificates:CE, ilac-MRA, CNAS, CAL, CMA, FCC, ROHS, ISO
3. Strong R&D department, world leading touch foil technology!
* Simple operation of the software and easy maintenance. Even a green hand can do the calibration in 1 minute.
* High signal to noise ratios makes it's strong to resist interference.
* Able to work under glass max 12mm( if glass thickness over 8mm please inform in advance).
* Support manually adjust the threshold value to adjust its sensitivity.
* FPGA algorithm realize object recognition.
* Automatically amplifier the neighboring cable's signal if there is cable got damaged, so the foil works fine as long as the damaged wires are separated by other good wires.
* No dead corner for touch.
4. Professional devices, custom service is available.
Accept customization:10''-240'' ,Format ratio(optional):16:9, 16:10,4:3 ,Touch points:12-40points
* Max size can do is 5850*1400mm.
* Till now, the max size we made is 4100*1200mm.
5.Our team has more than 2 -10 years of sales experience, professional and efficient .
6.1 year comprehensive free warranty.
7.Fast delivery.
XTM Series/Size
1 Pieces
50 Pieces
200 Pieces
500 Pieces &above
15.6 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
17.1 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
18.5 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
19 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
21.5 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
22 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
24 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
27 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
32 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
43 inch
5 workdays
7 workdays
8-10 workdays
10-15 workdays
